MICROMASTER line

Production:
Hexagon MI TESA (Switzerland)

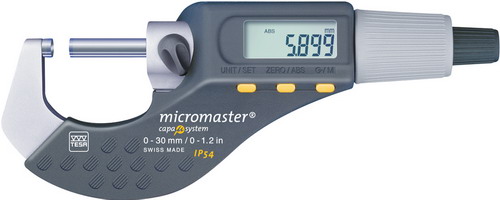

MICROMASTER micrometers
MICROMASTER micrometers
Main features and specifications:
  • division of the dial gauge is 0,001 mm/0,00005 inches;
  • LCD display with 7 mm digit height;
  • measurement results display in mm or inches;
  • measurement surface diameter is: 6.5 mm for 100 mm range, 8 mm for over 100 mm range;
  • zero setup or results records in any interval of results range;
  • process temperature: +10 +40;
  • humidity range is up to 80%;
  • battery life available;
  • automatic power-off in 10 minutes.
Electronic micrometers MICROMASTER EASY
Type Range,
mm/inch
Capacity,
mm/inch
Protection class RS-232 interface
06030010 0 30 / 0 1,2 0 30 / 0 1,2 IP40 no


Electronic micrometers MICROMASTER IP54
Type Range,
mm/inch
Capacity,
mm/inch
Protection class RS-232 interface
06030020 0 30 / 0 1,2 0 30 / 0 1,2 IP54 no
06030021 25 50 / 1 2 23 53 / 0,9 2,1 IP54 no
06030022 50 75 / 2 3 48 78 / 1,9 3,1 IP54 no
06030023 75 100 / 3 4 74 104 / 2,9 4,1 IP54 no


Electronic micrometers MICROMASTER IP54 RS-232

Type Range,
mm/inch
Capacity,
mm/inch
Protection class RS-232 interface
06030030 0 30 / 0 1,2 0 30 / 0 1,2 IP54 available
06030031 25 50 / 1 2 23 53 / 0,9 2,1 IP54 available
06030032 50 75 / 2 3 48 78 / 1,9 3,1 IP54 available
06030033 75 100 / 3 4 74 104 / 2,9 4,1 IP54 available
06030071 100 125 / 4 5 98 127 / 3,9 5,01 IP54 available
06030072 125 150 / 5 6 123 152 / 4,9 6,01 IP54 available
06030073 150 175 / 6 7 149 178 / 5,9 7,01 IP54 available
06030074 175 200 / 7 8 174 203 / 6,9 8,01 IP54 available
06030075 200 225 / 8 9 199 229 / 7,9 9,01 IP54 available
06030076 225 250 / 9 10 224 254 / 8,9 10,01 IP54 available
06030077 250 275 / 10 11 250 279 / 9,9 11,01 IP54 available
06030078 275 300 / 11 12 275 304 / 10,9 12,01 IP54 available
Accessories:
Type Description
00560013 lithium battery 3 V, 190 mAh, CR 2032 type
