Scales with label printing Dibal W-025 with a rack

Production:
DIBAL ()

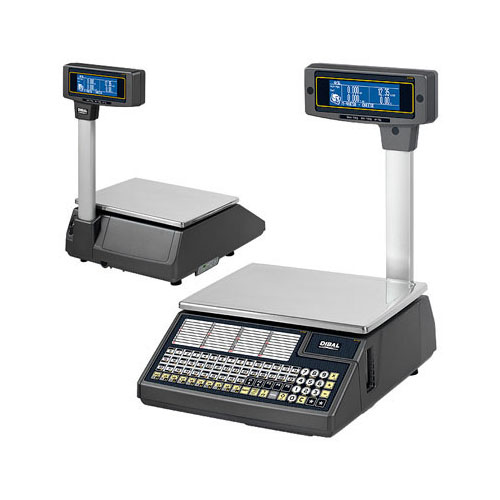

Scales with label printing Dibal W-025 with a rack
Scales with label printing Dibal W-025 with a rack

Easy to use and configure scales Dibal W-025 (Spain) Wind series are designed for weighing and labeling. The scales automatically calculate the cost of the goods and have a built-in thermal label printer, support the tare function and are equipped with the product selection buttons.
You can order the scale by the promotional price by phone: (057) 714-26-54 and (067) 563-31-62 Or by sending an order to massa@koda.ua

Functional features:

  • Built-in thermal label printer.
  • Two liquid crystal displays with backlit.
  • Ethernet communication, TCP/IP protocol.
  • Selection the desired label from the samples stored into the scale`s memory.
  • Forming the label of any structure and size.
  • Ability to print on a check of any length.
  • Special buttons for direct access to the menu and its programming, allow you to change the price, add a PLU or supplier, get sales reports.
  • Direct access to 999 PLU from the keyboard.
  • A configurable system password for security.

Advantages:

  • Simple and understandable buttons on scales.
  • Large display.
  • High speed: printing, connecting, weighing, data transfer.
  • The number of direct buttons is 98.
  • Three-level system of final labels (tray -1 level, box - 2 level, pallet -3 level);
  • Possibility of warehouse accounting;
  • Convenient software for working with scales and its integration with trading systems.
    Max 6/15 kg
    Increment 2/5 g
    Memory 8000 PLUs
    Buyer display LCD with backlighting
    Operating conditions 0˚С +40˚С. Relative humidity up to 85%
    Power supply 230В/60Hz
    Power consumption 30 W
    Accuracy class ІІІ (medium)
    Printer label/check; automatic setting of paper detection
    Maximum speed of printing 100 mm/s
    Printing type Thermal printing
    Label width 30…6 mm
    Label length 30…100 mm
    Number of built-in label formats 20
    Number of programmable label formats 10
    Number of fields for information in the label 40
    Number of logos in the label 40
    Programmable texts in the label 100
    Quantity of goods in check 40
    Number of built-in check formats 2
    Number of programmable check formats 1
    Quantity of logos 4
    Barcode formats EAN-13, GS1 DataBar
    Number of direct access buttons 98
    Interfaces Ethernet TCP/IP
    Connecting a cash drawer 24V
    Connecting a barcode scanner RS-232, 5V
    Removable cassette No
