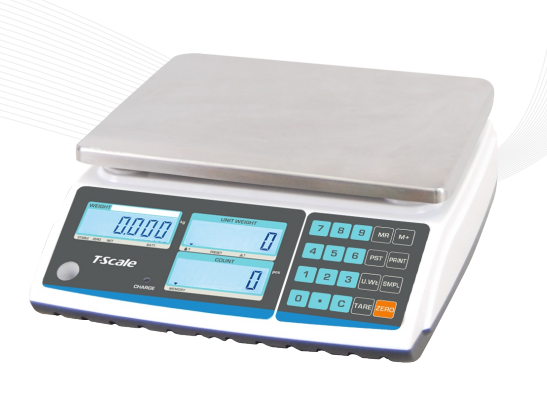

Bench scales of increased accuracy ZHC

Bench scales of increased accuracy ZHC
Bench scales of increased accuracy ZHC

Electronic scales for technological applications.
Description:

  • Display: liquid crystal, illuminated, symbol height 15 mm.
  • Platform: stainless steel.
  • Housing of scales is made of high-quality ABS plastic.
  • Keyboard is a membrane 20-button.
  • Level setting using four adjustment feet and level indicator.
  • Power supply: from the AC 220 V network through the mains voltage adapter 12 V, 500 mA, from the built-in 6 V battery, 3.2 Ah.
  • Operating temperature range: from minus 10 to plus 40 ºС.
  • Degree of protection according to GOST 14254: IP 44.
  • Protection class against electric shock according to GOST 12.2.007.0 - II.

Weighing modes:
  • simple weighing.
  • weighing with a sample of tare weight (determination of gross/net weight).
  • weighing with counting.
  • summation.
  • control deviation (by mass and number) - sound signal.
  • two ways to determine the mass of an object: keyboard input or sample weighing.

Features:
  • fast and stable determination of mass: time of stabilization of the readings when weighing is not more than 4sec.
  • blocking the scales if the mass of the load placed on the load platform exceeds the NWL.
  • battery life time up to 60 hours.
Model
Max, kg
Min, g
Price division (e=d), г
Platform size, mm
ZHC-3-0,1
3
2
0,1
204 x 263
ZHC-6-0,1
6
2
0,1
204 x 263
ZHC-30-0,5
30
10
0,5
204 x 263

Documentation kit supplied with scales:
  • User manual in Ukrainian.
  • Calibration certificate.

Additional information
