ISO 9001:2015
Modern means of measuring equipment


ISOMASTER Standard

Production:
Hexagon MI TESA (Switzerland)

Main specifications:

  • price division of the scale: 0.01 mm (0.0001 inches);
  • slant marks for whole millimeters are plotted on the cylinder separately from the straight divisions for half millimeters to completely eliminate errors in reading the data;
  • to deactivate the friction gear built into the drum, simply turn the knurl.

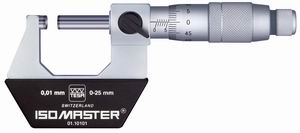

Micrometers ISOMASTER Standard series
Micrometers ISOMASTER Standard series
Type Measuring range, mm (inch)
Metric:
01.10101 0…25
01.10102 25…50
01.10103 50…75
01.10104 75…100
01.10105 100…125
01.10106 125…150
01.10107 150…175
01.10108 175…200
01.10109 200…225
01.10110 225…250
01.10111 250…275
01.10112 275…300
Inch:
01.20101 0…1
01.20102 1…2
01.20103 2…3
