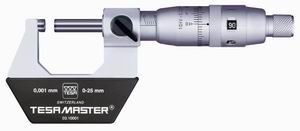

TESAMASTER
- Production:
- Hexagon MI TESA (Switzerland)
Main specifications:
- precision micrometer with a digital readout of 0.1 mm (0.005 inches);
- mechanical indicator with a digital counter;

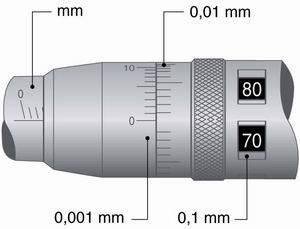

- analog indication of full millimeters, hundredths and fractions of hundredths;
- price division of the analog scale: 0.001 mm (0.0001 inch);
- accurate rapid reading of tenths;
- non-parallax reading of thousandth by vernier.
- Micrometers TESAMASTER series
| Type | Measuring range, mm (inch) | Non-parallelism, μm | Admissible error, μm |
| Metric: | |||
| 03.10001 | 0…25 | 1 | 2 |
| 03.10002 | 25…50 | 1,5 | 2 |
| 03.10003 | 50…75 | 1,5 | 3 |
| 03.10004 | 75…100 | 1,5 | 3 |
| 03.10005 | 100…125 | 2 | 4 |
| 03.10006 | 125…150 | 2,5 | 4 |
| 03.10007 | 150…175 | 3 | 5 |
| 03.10008 | 175…200 | 3 | 5 |
| 03.10009 | 200…225 | 3,5 | 6 |
| 03.10010 | 225…250 | 3,5 | 6 |
| 03.10011 | 250…275 | 4 | 7 |
| 03.10012 | 275…300 | 4 | 7 |
| Inch: | |||
| 03.20001 | 0…1 | 1 | 2 |
| 03.20002 | 1…2 | 1,5 | 2 |
| 03.20003 | 2…3 | 1,5 | 3 |
| 03.20004 | 3…4 | 1,5 | 3 |
