Pressure gauge type 213.40
- Production:
- WIKA (Germany)
With liquid-filled, body of hot stamped brass. Is designed for gaseous and liquid, not highly viscous and not crystallizing pressure media, aggressive with respect to the copper alloys. For measurements with high dynamic loads and vibrations.

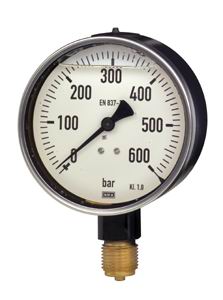

- Pressure gauge type 213.40
Description and specifications:
| Parameter | Value |
| Nominal size, mm | 63, 100 |
| Measuring range (EN 837-1/5) | 0…0,6 to 0…1000 bar |
| Accuracy class (EN 837-1/6) | НР 63: 1,6, НР 100: 1,0 |
| Joining | External thread below or from the back side, НР 63: G 1/4 В, НР 100: G 1/2 В |
| Sensing element | Burdon tube, copper alloy |
| Housing | Pressed brass black painting, with holes for equalizing pressure from above on the side surface of the body |
| Execution | EN 837-1, filling: glycerine 99,7% |
| Possible options / features | Internal pressure equalization (diaphragm), increased medium temperature up to 100 ° C with special soldering, mounting flange in front or on the back side, three-faced front ring with mounting bracket |
| Data sheet | РМ 02.06 |
