Wagon scales for static and dynamic weighing KODA-WD modification TWSD
Wagon scales for static and dynamic weighing KODA-WD modification TWSD

Our company offers wagon scales for weighing wagons and linertrains in static and dynamic modes.

In the static mode, wagon scales intended for weighing of freight cars at commercial, accounting and manufacturing operations. During operation in dynamic mode scales allow you to define the direction of the linertrain, number of axles in the wagon and quantity of wagons in the linertrain, the mass of each wagon trolley and the whole mass of the wagon, the speed of each wagon, the total weight of the linertrain, memorize and store the measurement results, print them.

When large volumes of freight traffic are passing through the scales, application of such scales can significantly reduce the time of weighing. The linertrain passes through the scale at a speed of 3 to 8 km/h.

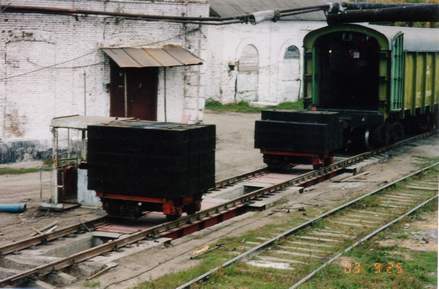

Wagon scales consist of two platforms. The trolleys of the wagon, which is going to be weighed are installed into the platform.

Each of the platforms on the strength characteristics designed in such a way that allows to load it up to 100 tons and allows passing the locomotive on weights. This corresponds to the load scheme 71 UIC (International Union of Railways).

The length of the platform is 4,5; 5,0 and 5,6 m.

The length of the intermediate element between the scale`s platforms could be variable. Combining the length of the platform and the length of the intermediate element, our experts select the best option of wagon scales for weighing the wagons with different base and different number of axes.

Weighing results are transferred to a PC and then into the computer system of enterprise management.

The supplied software TWDKODA is designed to automate the process of weighing the wagons at wagon scales TVSD modifications made on the basis of weighing electronics manufactured by UA Company "KODA"Ltd. (Ukraine). This program is based on years of experience manufacturing wagon scales and software to them and meets all the essential requirements of large and small businesses, which need to organize accounting for incoming and outgoing goods traffic going through the wagon scales. Scales may be installed in places with loading the bulk material (grain, coal, etc.) without uncoupling wagons.

On customer request wagon scales can be equipped with additional options.

The video surveillance system is certificated in Ukraine.

Wagon scales as well as weighbridges equipped with analog load cells CPR produced by Bilanciai (Italy). This company is a leading manufacturer of weighbridges and wagon scales in Europe. Load cell housing is made of stainless steel. Cover protection of load cells - IP68.

The specialists of our company make the full cycle of works, from design works to delivery, installation and commissioning works. Our company gives warranty and makes post-warranty service.

Warranty period - 18 months from the date of commissioning.
