Counting scales CERTUS

Production:
CERTUS (TScale, Taiwan)

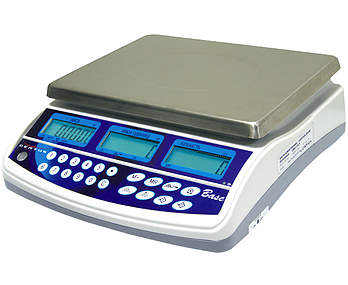

Counting scales Counting scales CERTUS

Calculation using electronic scales is accurate, economical and efficient. Size and shape of the product does not matter. The only requirement - the mass of goods should be approximately the same. The average weight is determined by weighing a known amount of goods or by keyboard entry. p>

Electronic scales for application in the field of legally regulated metrology.

Certificate of Type No. UA.TR.113-0010 / 03-16 dated June 29, 2016, valid until 28.06.2026.

Accuracy class according to DSTU EN 45501- medium (III).

Description:

  • Display: 3 LCD display with backlit, height of symbols 20 mm;
  • Platform: stainless steel;
  • Set on level: using four adjustable feets and bubble level;
  • Power supply: AC 220 V with adapter 9 V, 800 mA and built-in battery 6 V, 4 Ah;
  • Operating temperature range from minus 10 to plus 45C.
  • The degree of protection in accordance with 14254: IP 20.
  • Interface RS 232C as option.

Functions:

  • Tare sample up to 100% of capacity, gross/net mass determination;
  • Mass of tare may be entered n manual mode from the keyboard;
  • Function of counting the number of identical goods on mass, both located on the weighing platform;
  • Summing function, which allows you to store the weighing data and recall the accumulated mass;
  • Automatic zero tracking.

Features:

  • fast and stable measuring the mass: time of stabilization the data during weighing not more than 4 sec.;
  • increased accuracy;
  • 3 digital displays for displaying information: weight, mass per unit, number of units;
  • lock of scales if the loaded mass of the goods exceeds the maximum capacity;
  • sound for the set weighing results;
  • battery life of the scales is up to 100 hours.
    Model
    Max, kg
    Min, kg
    Division, g
    Platform size, mm
    Counting scales according to EN 45501 : 2007 (two interval)
    -3-1
    3
    0,01
    1
    225 × 300
    -3/6-1/2
    3/6
    0,02/3
    1/2
    -6/15-2/5
    6/15
    0,04/6
    2/5
    -15/30-5/10
    15/30
    0,1/15
    5/10
    Counting scales with increased accuracy
    -3-0,1
    3
    0,002
    0,1
    225 × 300
    -6-0,2
    6
    0,004
    0,2
    -15-0,5
    15
    0,010
    0,5
    -30-1
    30
    0,020
    1

    Documentation kit supplied with the scales:
    • Type Verification Certificate: No. UA.TR.113-0010 / 03-16 of June 29, 2016.
    • Certificate of conformity.
    • Declaration of conformity.
    • Operating manual in Ukrainian with verification stamp on the passage of the primary verification.

    Additional information
