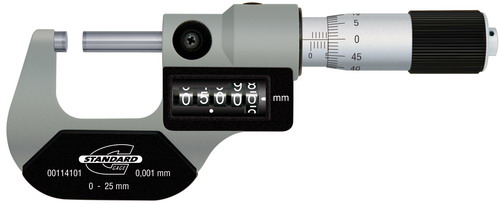

STANDARD GAGE (with digital counter)
- Production:
- Hexagon MI STANDARD GAGE (Switzerland - China)
Key features and specifications:
- Digital counter to avoid errors when reading the data;
- Installation measure for micrometers with a measuring range of more than 25 mm;
- Friction drum;
- Solid carbide measuring surfaces;
- Discreteness of the digital counter, mm / inch: 0.001 / 0.00001;
- Price division of the vernier scale, mm / inch: 0.01 / 0.0001;
- Supplied in a separate box with an inspection report.
| Type | Measuring range | Error | Installation measure |
| Metric | mm | mm | mm |
| 00114101 | 0 … 25 | 0,004 | - |
| 00114102 | 25 … 50 | 0,004 | 25 |
| 00114103 | 50 … 75 | 0,005 | 50 |
| 00114104 | 75 … 100 | 0,005 | 75 |
| Inch | inch | inch | inch |
| 00124024 | 0 … 1 | 0,00016 | - |
| 00124025 | 1 … 2 | 0,00016 | 1 |
| 00124026 | 2 … 3 | 0,00020 | 2 |
| 00124027 | 3 … 4 | 0,00020 | 3 |

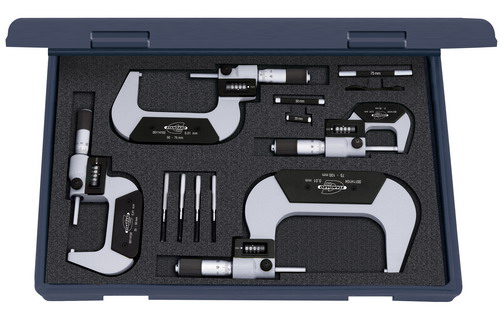

Kits of electronic micrometers
are supplied in a special case with inspection reports for each micrometer.
| Type | Measuring range | Number of micrometers | Installation measures |
| Metric | mm | pcs | mm |
| 00114110 | 0 … 75 | 3 | 25, 50 |
| 00114111 | 0 … 100 | 4 | 25, 50, 75 |
| Inch | inch | pcs | inch |
| 00124028 | 0 … 3 | 3 | 1, 2 |
| 00124029 | 0 … 4 | 4 | 1, 2, 3 |

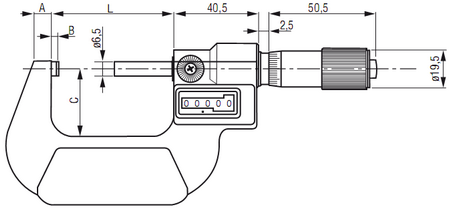

Dimensions
| Measuring range | Dimensions, mm | ||||
| mm | inch | A | B | C | L |
| 0 … 25 | 0 … 1 | 6 | 3 | 24 | 32 |
| 25 … 50 | 1 … 2 | 8 | 3 | 32 | 57 |
| 50 … 75 | 2 … 3 | 8 | 3 | 45 | 82 |
| 75 … 100 | 3 … 4 | 10 | 3 | 57 | 107 |
