L6E series

Production:
ZEMIC (China)

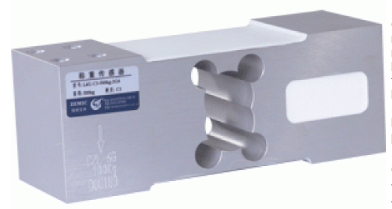

Single point load cells L6E series

This kind of load cells are used in platform and trade scales with one load cell.

Maximum kg: 50, 100, 150, 200, 250, 300, 500, 600

Accuracy class: C3

Platform size: 600 x 600 mm

  • Work transfer coefficient: 2 mV/V;
  • Combined error: 0.02% of the maximum capacity;
  • Class of protection: IP65;
  • Range of temperature compensation: -10... +40°C;
  • Permissible overload: 150%;
  • Material: aluminum
