Modern means of measuring equipment


H3 series

Production:
ZEMIC (China)

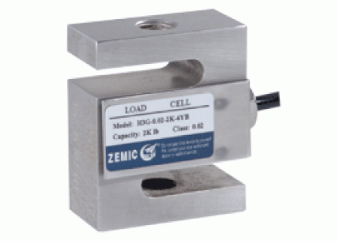

S-type load cells H3 series

S-shaped load cells can work on both compression and tension, so they can be successfully used in platform and bunker scales, but they are most widely used in dosing systems and in crane scales.

Maximum, kg: 25, 50, 100, 150, 200, 250, 300, 500, 600, 750, 1000, 1500, 2000, 2500, 3000, 5000, 7500, 10000, 15000, 20000, 30000

Accuracy class: C3

Material: nickel-plated steel.

  • Work transfer coefficient: 2 mV/V;
  • Combined error: 0.02% of the maximum capacity;
  • Class of protection: IP67;
  • Range of temperature compensation: -10... +40°C;
  • Permissible overload: 150%;
