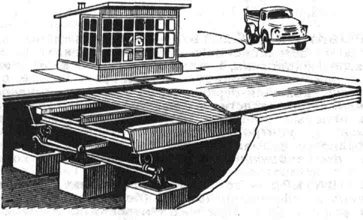

Remaking the mechanical weighbridges into electronic

Weighbridge upgrading Remaking the mechanical weighbridges into electronic

Each case of weights modernization is individual. To select the optimal solution the specialist of "KODA" has to inspect the territory and give recommendations.

Possible upgrading versions:


1) Saving the maximum weighing limit and size of scales.
2) Platform recovering.
3) Increasing the maximum weighing range.
4) Increasing the maximum weighing limit with the scales elongation.


Works Version 1 Version 2 Version 3 Version 4
1 Inspection of weights, technical specification development + + + +
2 Removing the mechanism (levered system) + + + +
3 Recovering the platform (changing the deck)
+

4 Strengthening the platform (replacing deck and bearing beams)

+ +
5 Strengthening the foundation

+ +
6 Extension the foundation pit


+
7 Building an additional element of the foundation


+
8 Adding a new section to the existing the platform


+
9 Mounting the electronics and commissioning works
+

+

+

+
10 Participation in state verification + + + +

Works in paragraphs 2…8 can be performed by the customer with the drawings and instructions given by our company. As a result of modernization the customer receives strain weighbridges with the pit foundation modification. These scales are listed into the State Register of measuring instruments and correspond the DSTU EN 45501:2016.
