STANDARD GAGE

Production:

Hexagon MI STANDARD GAGE (Switzerland - China)

Key features and specifications:

• Automatic power off;
• Display of measurement results in millimeters and inches;
• Zeroing and fixing values anywhere in the range of readings;
• Supplied with a nozzle for measuring the pipe wall thickness;
• Clutch with ratchet and locking clamp;
• Protection class up to IP54;
• Absolute measurement;
• Solid carbide measuring surfaces.

Type	Measuring range	Digital scale discrete	Error
Metric	mm	mm	mm

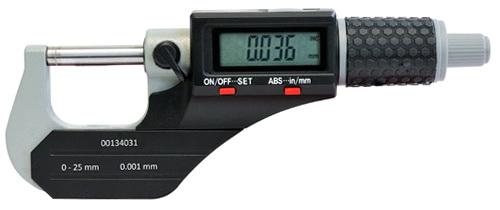

00134031	0 … 25	0,001	0,004

Key features and specifications:

• Automatic power off;
• Display of measurement results in millimeters and inches;
• Zeroing and fixing values anywhere in the range of readings;
• Installation measure for micrometers with a measuring range of more than 25 mm;
• Friction drum;
• Protection class up to IP54;
• Absolute measurement;
• Solid carbide measuring surfaces;
• Digital scale discrete, mm / inch: 0.001 / 0.00005;
• Scale division, mm / inch: 0.01 / 0.0001.

Тип	Measuring range	Digital scale discrete	Error	Installation measure
Metric	mm	mm	mm	mm

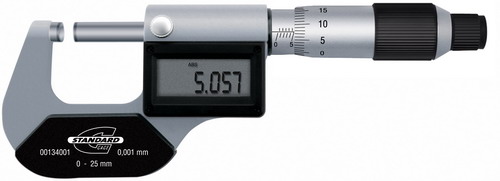

00134001	0 … 25	0,001	0,004	-
00134002	25 … 50	0,001	0,004	25
00134003	50 … 75	0,001	0,005	50
00134004	75 … 100	0,001	0,005	75
Inch	inch	inch	inch	inch
00134021	0 … 1	0,00005	0,00016	-
00134022	1 … 2	0,00005	0,00016	1
00134023	2 … 3	0,00005	0,00020	2
00134024	3 … 4	0,00005	0,00020	3

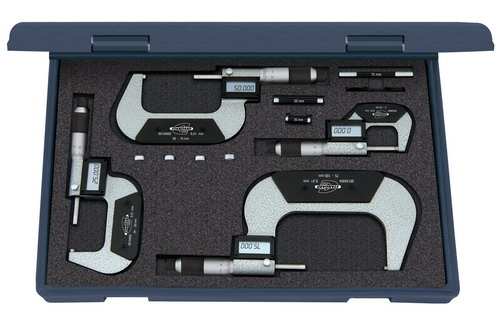

Kits of electronic micrometers
are supplied in a special case with inspection reports for each micrometer.

Type	Measuring range	Number of micrometers	Installation measures
Metric	mm	pcs	mm
00134040	0 … 75	3	25, 50
00134041	0 … 100	4	25, 50, 75
Inch	inch	pcs	inch
00134045	0 … 3	3	1, 2
00134046	0 … 4	4	1, 2, 3

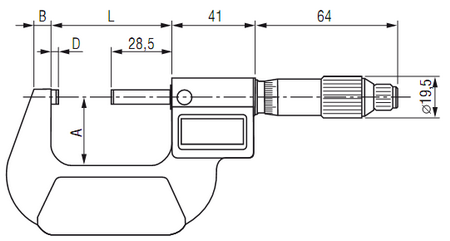

Dimensions

Measuring range		Dimensions, mm
mm	inch	A	B	D	L
0 … 25	0 … 1	24	6	3	32
25 … 50	1 … 2	32	8	3	57
50 … 75	2 … 3	45	8	3	82
75 … 100	3 … 4	57	10	3	107
