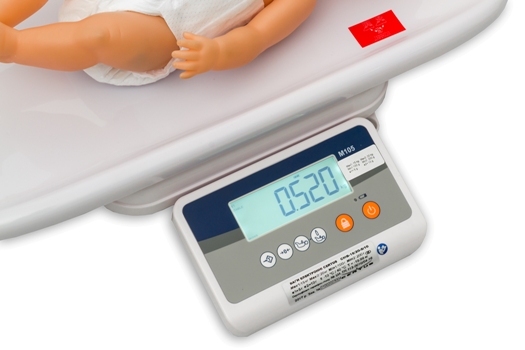

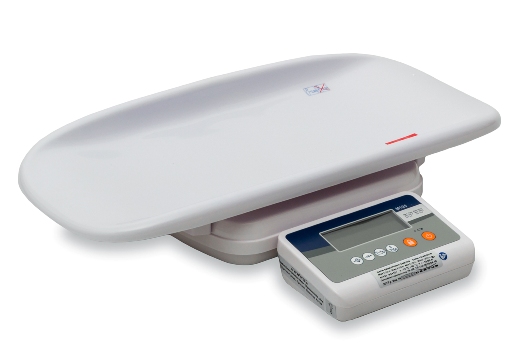

Scales CERTUS® Medical medical electronic for weighing babies

Production:

CERTUS (Ukraine-Taiwan)

Scales for newborns CERTUS® Medical without height meter

The scales are designed for weighing newborns, infants, children in pediatric medical institutions, in nurseries and kindergartens.

The scales are allowed to be used in the sphere of legally regulated metrology

Accuracy class according to DSTU EN 45501: 2007: III (medium).

Class in accordance with the technical regulations of medical devices - I.

Protection class against electric shock according to GOST 12.2.007.0 - II.

Documentation:

• Type Verification Certificate: No. UA.TR.113-0010 / 04-16 of June 29, 2016.
• Certificate of compliance with the Technical Regulations of non-automatic weighing devices.
• Certificate of compliance with the Technical Regulations of Medical Devices.
• User manual in Ukrainian with an impression of the verification stamp

Specifications:

• Maximum weighing limit: 15 kg, 20 kg.
• Platform: 32.5 × 28.5 cm.
• Baby tray: 60 × 28.2 cm.
• Case: ABS plastic. Sanitation, disinfection, irradiation with quartz is allowed
• Display: liquid crystal, with white backlight, symbol height 25 mm.
• Operating temperature: from minus 10 to plus 40 ° С.
• Fast weighing: no more than 2 s.
• Power supply from 220 V and battery (up to 20 hours).
• Mass of scales: 6.6 kg.

Features:

• The baby tray is removing for weighing the children standing on the scales.
• 4 adjustable feet for leveling. Level indicator – bubble.
• Ability to mount the indicator on the wall.
• RS 232 interface for connecting to a PC.
• Materials: materials of construction of scales do not have a dangerous and harmful effect on the human body and the environment under all operating conditions stipulated in the operating conditions, and also do not create fire and explosive situations.

Features:

• Control of feeding: determining the difference in weight before and after feeding.
• Net weight: The weight of the diaper/clothes is stored in the scale`s memory.
• Fixing mass: holding the weighing result on the display.
• Increased accuracy: weighing in the "10 times more accurate" mode.

Model of the scales	Мах, kg	Мin, kg	d=e, g
СМВ-6/15-2/5 without height measuring	15	0,04	2 40 to 6000	5 6000 to 15000
СМВ-15/20-5/10 without height measuring	20	0,1	5 100 to 15000	10 15000 to 20000

Max is the maximum weighing limit. Min is the minimum weighing limit. d - is the actual division price, e - is the cost of the verification division.
