Level sensor VEGAPULS 6X

Production:

VEGA (Germany)

VEGAPULS 6X is a sensor designed for continuous level measurement of liquids or solids for any task in a variety of applications. With a wide range of versions and flexible, application-specific configuration, the VEGAPULS 6X radar level ыутыщк offers a reliable and cost-effective solution for all application levels. Thanks to its diverse antenna systems, it provides reliable, maintenance-free operation in both simple and the most complex applications.

• Measuring range: up to 120 m
• Frequency: 6 Ghz, 26 HGz, 80 GHz
• Connection: threaded ≥ G¾, ≥ ¾ NPT, flanged ≥ DN20, ≥ ¾", hygienic Clamp ≥ 1½", mounting bracket

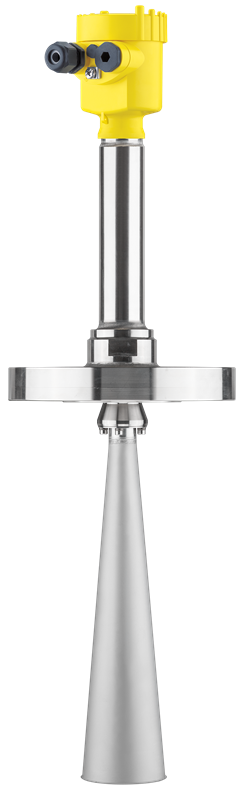

• Operating temperature: -196…+450 °C
• Working pressure: -1…+160 bar (-100…+16000 kPa)
• Measurement accuracy: ± 1 mm

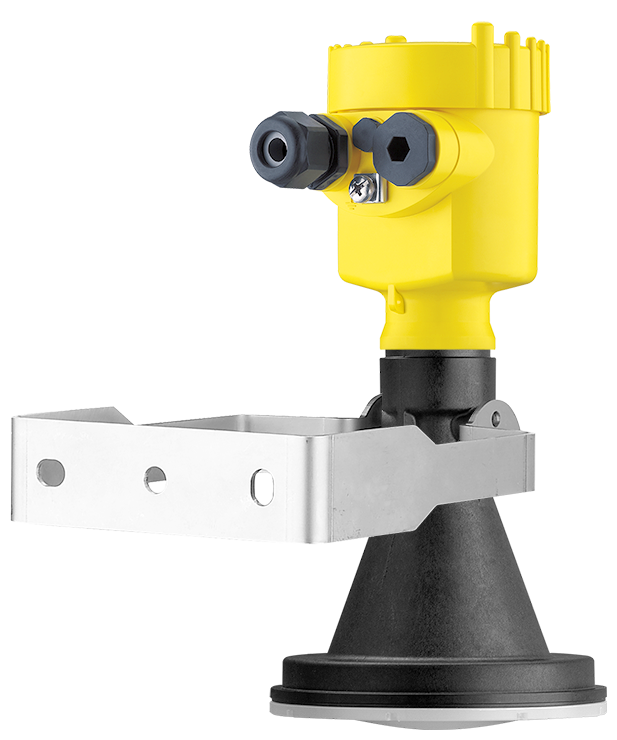

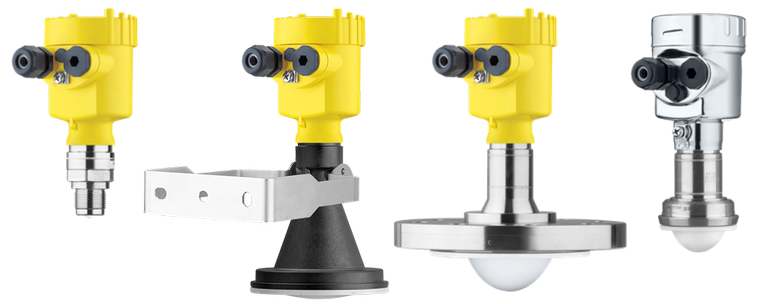

1. Plastic horn antenna

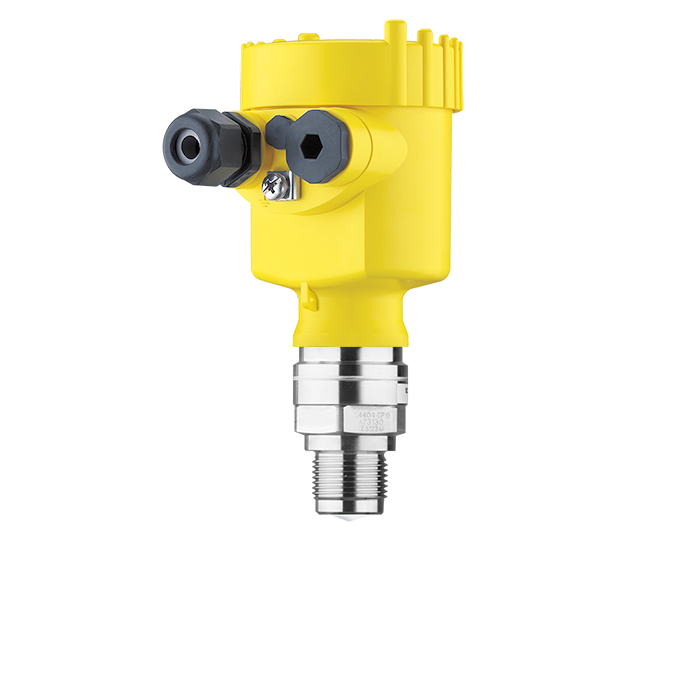

2. Thread with integrated antenna system
3. Plastic coated flange

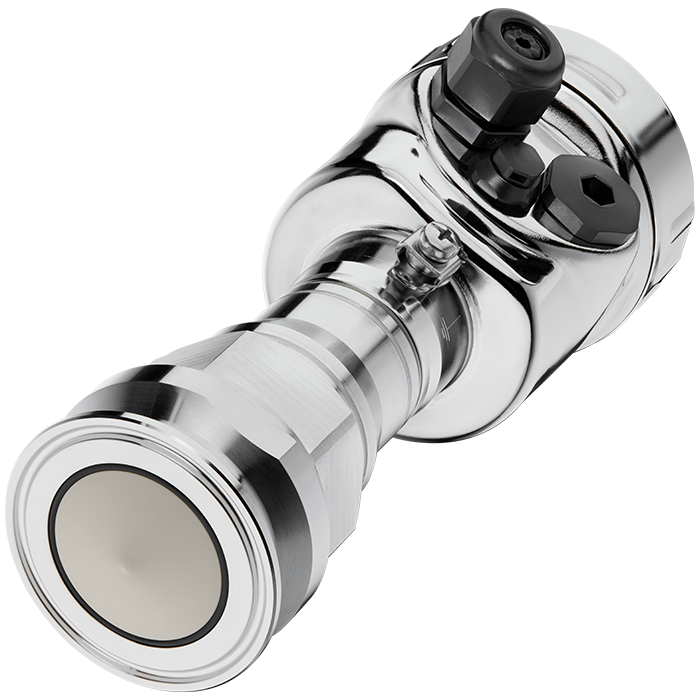

4. Hygienic connection

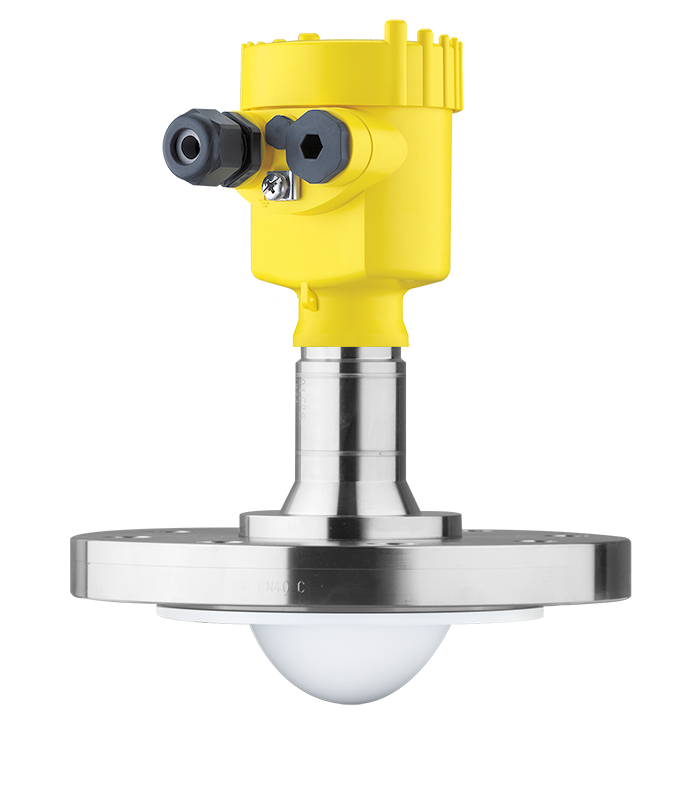

5. Flange with lens antenna
