Trade water-proof scales CERTUS® Hercules СНВм

Manufacturer:

  • CERTUS (Ukraine-Taiwan)

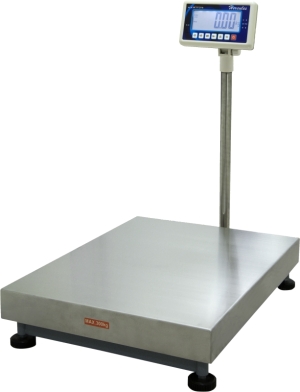

Platform trade scales Trade water-proof scales CERTUS® Hercules СНВм

The construction of Hercules scales provides exploitation in places with vibrations from the working mechanisms. Scales are recommended for industrial enterprises.

Specifications:

  • Display: LCD with backlight, height of symbols is 52 mm;
  • Platform: Stainless steel for scales with one sensor; structural steel for scales with four sensors; housing of terminal: plastic;
  • Four adjustable feet and a level indicator will help you to set the scales on level;
  • Power supply: AC 220 V with 9 V, 800 mA adapter and built-in battery 6 V, 4 A•h;
  • Operating temperature range from minus 10 to plus 45 ° C;
  • Class of protection of the terminal in accordance with ГОСТ 14254: IP 20;
  • Class of protection of the load cells according to ГОСТ 14254: IP 65.
  • Interface RS 232C - as base
  • USB, Bluetooth, analog output - option.

Functions:

  • Tare sample up to 100% of capacity, gross/net mass determination;
  • Selecting the weight unit - kilograms, pounds or ounces;
  • The function of summation, which allows you to store the weighing data and recall the accumulated sum from the memory;
  • Automatic zero tracking;
  • Conformity check of cargo weight to predetermined weighing borders;
  • The measurement of the animals mass.

Ukraine State Register of measuring equipment 2784-08

Features:

  • Fast and stable definition of mass: stabilization time when measuring the mass no more than 4 seconds;
  • Blocking the scales if the mass of the load placed into the platform, exceeds the maximum capacity;
  • When you connect the printer to scales, you can print out the following data: date, time, weight;
  • Signal for a given weighing results;
  • Battery operating time up to 30 hours;
  • Automatic shutdown mode.

Execution
Max, kg
Min, kg
Increment, kg,
division, g
Platform, mm
Number of load cells
СНB-60А10
60
0,2
10
400 × 500
1
СНB-150А20
150
0,4
20
400 × 500
1
СНB-150С20
150
0,4
20
600 × 800
1
СНB-300С50
300
1
50
600 × 800
1
СНB-500С100
500
2
100
600 × 800
1
СНB-300Е50
300
1
50
800 × 800
1
СНB-600Е100
600
2
100
800 × 800
1
СНB-1000Н200
1000
4
200
1000 × 1000
4
СНB-2000Н500
2000
10
500
1000 × 1000
4
СНB-1000М200
1000
4
200
1200 × 1200
4
СНB-2000М500
2000
10
500
1200 × 1200
4
СНB-3000М500
3000
10
500
1200 × 1200
4
СНB-2000Т500
2000
10
500
1500 × 1500
4
