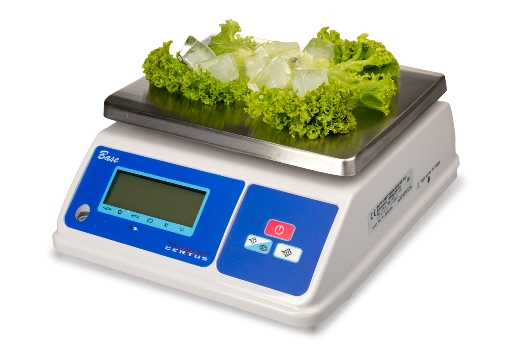

Water-proof scales CERTUS® СВСв
Manufacturer:
- CERTUS (Ukraine-Taiwan)
Electronic scales for application in the field of legally regulated metrology .
Certificate of Type No. UA.TR.113-0010 / 03-16 dated June 29, 2016, valid until June 28, 2026.
Accuracy class according to ДСТУ EN 45501- medium (III).
Description:
- Display: liquid crystal, illuminated, symbol height 25 mm.
- Platform: stainless steel.
- Housing: ABS plastic.
- Level setting using four adjustable feet and level indicator.
- Power supply: from the AC 220 V network through the mains voltage adapter 9 V, 800 mA and from the battery 6 V, 3.2 Ah.
- Operating temperature range: from minus 10 to plus 40 ºС.
- Degree of protection according to GOST 14254: IP 54 when operating from a network adapter. IP 65 - when running on battery power.
- Protection class against electric shock according to ГОСТ 12.2.007.0 - II.
Weighing modes:
- simple weighing.
- weighing with a sample of tare weight (determination of gross / net weight).
- Multitare.
Features:
- fast and stable determination of mass: time of stabilization of indications at weighing no more than 4sec.
- blocking the scales if the weight of the load placed on the load platform exceeds the NWL.
- battery life time up to 70 hours.
of each interval, g |
||||
| СВСв-3/6-1/2 | ||||
| СВСв-6/15-2/5 | ||||
| СВСв-15/30-5/10 |
Documentation kit supplied with scales:
- Certificate of Type Check: No. UA.TR.113-0010 / 03-16 of June 29, 2016.
- Certificate of conformity
- Declaration of conformity
- Operating manual in Ukrainian with an impression of the verification stamp on the passage of the primary verification.
Description and technical specifications
Влагозащищенные весы CERTUS СВСв и СВСм (doc, 700 Кб)
