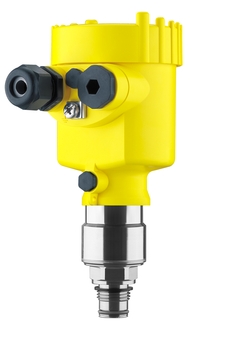

Level sensor VEGABAR 83
- Production:
- VEGA (Germany)
Pressure sensor VEGABAR 83 with metal membrane is suitable for use in any industry for pressure and level measurement of liquids and gases at high pressures.
- Measuring cell: piezoresisitive/thin film strain gauge/METEC®
- Measuring range: -1…1000 bar (-100…100 000 kPa)
- Deviation: 0.2%, 0.1%, 0.075%
- Process temperature: -40…+200°C
- Connection: thread from G ½, ½NPT, flanges from DN 25, hygienic connection
- Output signal: 4…20 mA, 4…20 mA/HART, Profibus PA, Foundation Fieldbus

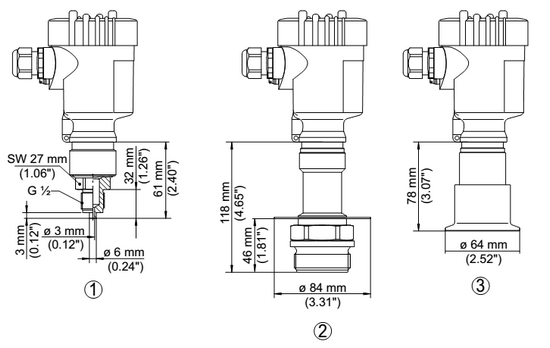

- Threaded version G½, Manometric connection EN 837;
- Threaded version flush with thermo-screen (-12 ... +200 ° C);
- Version with Tri-Clamp clip
