Scales platform electronic CERTUS Hercules SNP

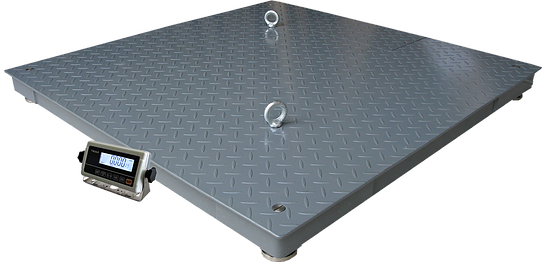

Platform electronic scales CERTUS Hercules P
Platform electronic scales CERTUS Hercules P

Electronic scales for application in the field of legally regulated metrology.

Certificate of Type No. UA.TR.113-0010 / 04-16 dated June 29, 2016, valid until June 28, 2026.

Accuracy class according to DSTU EN 45501- medium (III).

Description:

  • Platform: has a large margin of safety. The thickness of the sheet is 4 mm. Platform coating: powder coating (method of applying a polymer coating with high protective and decorative properties). The material of the platform is structural steel. The corrugated sheet prevents sliding of the load along the platform. Observance of flatness and straightness of the platform makes it possible to install the scales into the pit.
  • Weighing processor is equipped with a bright LCD display with turquoise backlight, the height of the which is 30 mm, the case is made of high-quality ABS plastic, IP 20.
  • Operating temperature range: from 0 to plus 40 .
  • Power from the mains via adapter 12 V, 500 mA or battery 6V, 4 Ah (included).
  • COM port (RS 232 interface for connecting to PC and printer) is included.
Weighing processor CNP
Weighing processor CNP


Weighing modes:

  • simple weighing.
  • weighing with a sample of tare weight (determination of gross / net weight).
  • Summation.


Additional accessories:

  • ramp
  • stand for weighing processor
  • armored cable
  • duplicate scoreboard
  • TKCODA software
  • software for connecting to 1C
Model
Max, kg
Min, kg
Price division, g
Platform size, mm
One-interval execution according to DSTU EN 45501: 2007. Commercial weighing
-600200
600
4
200
12001200
-1500500
1500
10
500
12001200
-30001000
3000
20
1000
12001200

Documentation that comes with the scales:

  • Type Verification Certificate: No. UA.TR.113-0010 / 04-16 of June 29, 2016.
  • Certificate of conformity
  • Declaration of conformity
  • Operating manual in Ukrainian with an impression of the verification stamp on the passage of the primary verification
