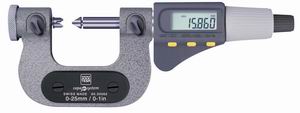

MICROMASTER AC
- Production:
- Hexagon MI TESA (Switzerland)
Main features and specifications:
- used to measure the initial thread diameter;
- measuring tip with adjustable holder for mounting measuring inserts with prismatic surface;
- smooth screw adjustment and device locking;
- there is an opening on the spindle for a tapered measuring insert;
- digital scale resolution 0.001 mm / 0.00005 inches;
- RS-232C interface;
- other characteristics: as in the standard MICROMASTER micrometer model.
- Micrometers MICROMASTER AC series
| Type | Measuring range, mm / inch |
| 60.30062 | 0…25 / 0…1 |
| 60.30063 | 25…50 / 1…2 |
| 60.30064 | 50…75 / 2…3 |
| 60.30065 | 75…100 / 3…4 |
| 60.30066 | 100…125 / 4…5 |
| 60.30067 | 125…150 / 5…6 |
