Optical incremental linear encoder RGH41
- Production:
- Renishaw (United Kingdom)

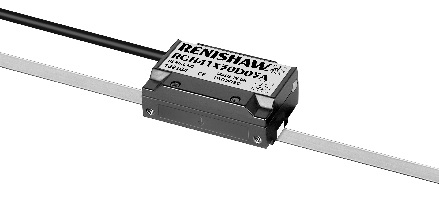

- Encoder RGH41
When working with the open, non-contact reading head of the RGH41 encoder a RGS40-S unique scale tape with a step of 40 μm by Renishaw is used, with a resolution of up to 50 nm!
Features and benefits of the RGH41 reading head
A compact and robust reading head with an integrated interpolator provides digital and analog output signals that meet the industry standard.
- High speed and reliability of work with zero friction and no mechanical wear.
- Scale with a step of 40 microns allows you to work with wide tolerances when installing the reading head.
- Simple installation and setup procedure due to the presence of a special built-in LED indicator.
The patented optical signal filtering system guarantees high signal stability under conditions that do not allow the use of most open optical encoders.
- The zero mark ensures the repeatability of the initial position, and the limit switches - the automatic signal giving the initiating stop of the moved node.
Scale tape RGS40-S with 40 μm steps
RGS40-S is made of a thin, flexible steel strip that is applied to the gold coating to provide high reflectivity and corrosion resistance. This tape can be fixed using a self-adhesive basis on most of the materials used in the industry, including metals, ceramics and composite materials.
- The tape is supplied on a reel, it is possible to cut parts of the necessary length, up to 70 m.
- Using the RGS-S ribbon allows you to simplify the temperature compensation thanks to its temperature characteristics to the characteristics of the base on which the tape is attached.
- There is a special device for fast and accurate installation of a scale tape.
- The lacquer coating of the tape is easy to clean and is resistant to external influences, which occurs when manipulating the tape.
- You can always cut a piece of any required length, which optimizes inventory management and minimizes waste.
- High accuracy of the linearity of the scale ± 3 μm / m ensures high overall accuracy with a simple adjustment procedure.
Specifications
| Built-in LED head position indicator |
Yes |
| Measuring range, m: | — optical scale RGS40–S — up to 50 — optical scale RGS40–P — up to 50 |
| Length, m: | — optical scale RGS40–S — from 0,1 to 50 (more than 50 m — by special order) — optical scale RGS40–P — from 1 to 50 |
| Resolution of digital output signal RS422, nm: | 50, 100, 200, 400, 1000, 2000, 5000, 10 000 |
| Resolution of analog output signal: | — 1 Vpp |
| Step of the scale, mkm: | — optical scale RGS40–S — 40 — optical scale RGS40–P — 40 |
| Max speed, m/s: | — for digital output signal — up to 15 — for analog output signal — up to 8 |
| Clearance between reading head and optical scale, mm: |
0,8 ± 0,15 |
| System accuracy at 20 ° C, μm/m: | — optical scale RGS40–S — ± 15 (± 3 — with 2-point compensation) — optical scale RGS40–P — ± 15 (± 3 — with 2-point compensation) |
| Scale option: | — optical scale RGS40-S - with self-adhesive base - optical scale RGS40-P - with self-adhesive base |
| Coefficient of thermal expansion, μm/m/°Ñ: | — optical scale RGS40-S - corresponds to the substrate material, the ends of the scale are fastened by clamps - optical scale RGS40-P - corresponds to the substrate material, the ends of the scale are fastened by clamps |
| Supply voltage, V: | 5 ± 5 % |
| Current consumption (without load), mA: | — 120 (in typical conditions) — 175 (RGH41N, W, Y, H) |
| Material: | — optical scale RGS40-S - thin,
flexible steel gilded strip with protective lacquer coating
- optical scale RGS40-P - thin, flexible steel gilded strip with protective polyester coating for increased resistance to the effects of aggressive chemicals |
| Cable: | — flexible, 12-core with double shielding, outer diameter 4.7 mm, cable service life for bending more than 20 x 10 6 cycles with a bend radius of 50 mm |
| Length of the cable, m: | 0.5, 1, 1.5, 3, 5 (D-type connector (15-pin), round connector (12-pin), in-line connector (16-pin) or free terminal (without connector)) |
| Dimensions of the reading head RGH34 (height × length × width), mm: | 17,0 × 44,0 × 27,0 |
| Mass of the reading head, g: | 50 |
| Mass of the cable, g: | 38 |
| Reference mark (zero): | Magnetic actuator (one-way repeatability up to 1 resolution unit) |
| Limit switches: | – optical scale RGS40–S – paired – optical scale RGS40–P – paired |
| Temperature, °Ñ: | — process — from 0 to + 55 — storage — from – 20 to + 70 |
| Degree of protection: | IP50 |
| Humidity (without compensation), %: |
— process — 80 — storage — 95 |
| Process acceleration, m/s 2: | 500 |
| Impact (in non-operating state, 6 ms, half-sinusoidal impulse), m/s 2: |
1000 |
| Vibration (in operation mode, at, at 55-2000 Hz), m/s2: | 100 |
