Pressure gauge type 111.10
- Production:
- WIKA (Germany)
Intended for gaseous and liquid, not highly viscous and non-crystallizing measured media, not corrosive to copper alloys. Standard execution. Radial connection from below.

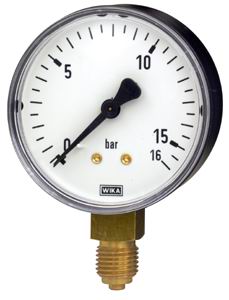

- Manometer type 111.10
Description and specifications:
| Parameter | Value |
| Nominal size, mm | 40, 50, 63, 80, 100, 160 |
| Measurement range(EN 837-1/5) | 0…0,6 to 0…400 bar, 0…0,6 to 0…40 bar (nominal size 160) |
| Class (EN 837-1/6) | 1,6 / 2,5 |
| Joining | External thread below, НР 40: G1/8B, НР 50, 63: G1/4B, НР 80, 100, 160: G1/2B, |
| Sensing element | Burdon tube, copper alloy |
| Housing | Black plastic. НР 160: black steel |
| Execution | EN 837-1 |
| Possible options / features | Housing is made of black painted steel. Special version for heating systems, for water level indicators, tire pressure measurements, refrigeration units |
| Data sheet | РМ 01.01 |
