Pressure gauge type 113.13
- Production:
- WIKA (Germany)
Designed for measurement tasks with pulsations and vibrations (liquid-filled). Version for gaseous and liquid, not highly viscous and not crystallizing pressure media, aggressive with respect to the copper alloys. Joining from bottom or back side.

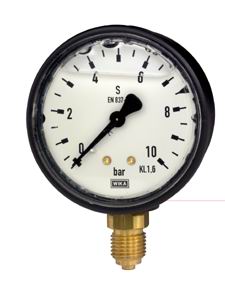

- Manometer type 113.13
Description and specifications:
| Parameter | Value |
| Nominal size, mm | 40, 50, 63 |
| Measuring range (EN 837-1/5) | 0…1,0 to 0…400 bar |
| Class (EN 837-1/6) | 2,5 |
| Joining | External thread below or from the back side. НР 40: G1/8B, НР 50, 63: G1/4B, |
| Sensing element | Burdon tube, copper alloy |
| Housing | Black plastic with front flange |
| Execution | EN 837-1, liquid filling: glycerine 99,7% |
| Possible options / features | Connector ring in front, bracket joint |
| Data sheet | РМ 01.04 |
