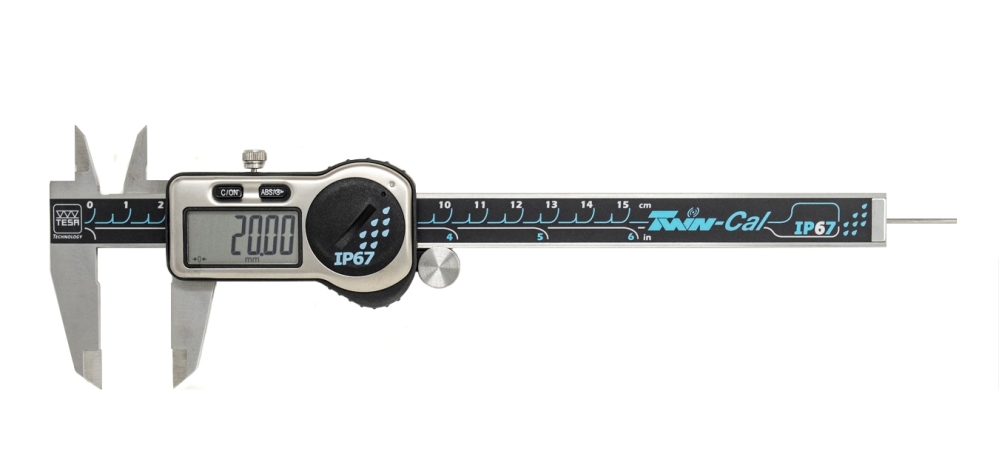

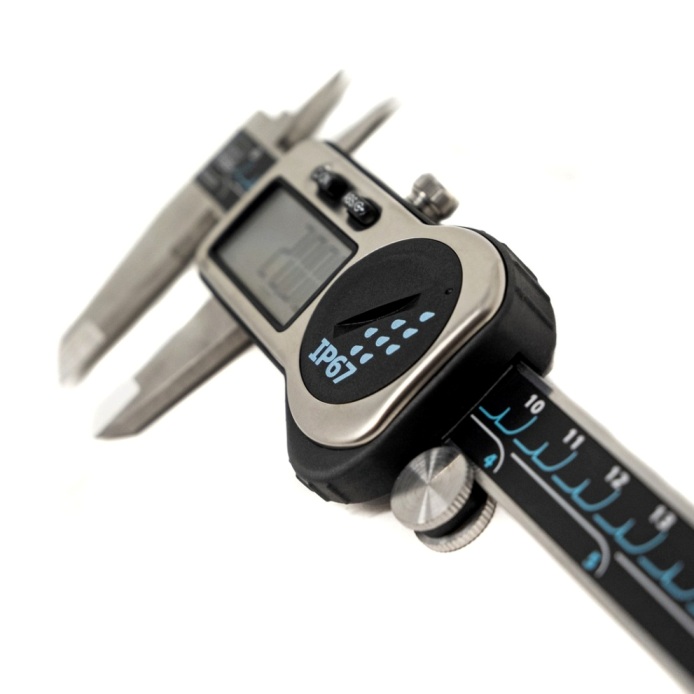

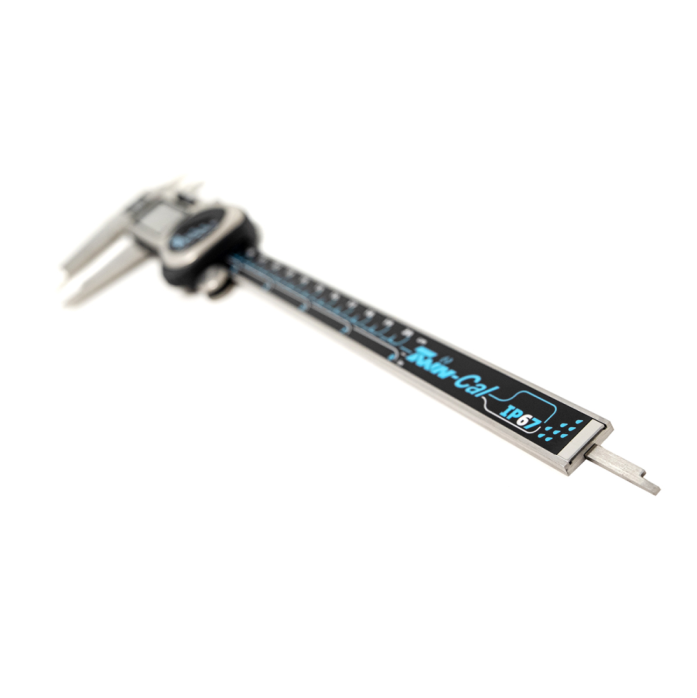

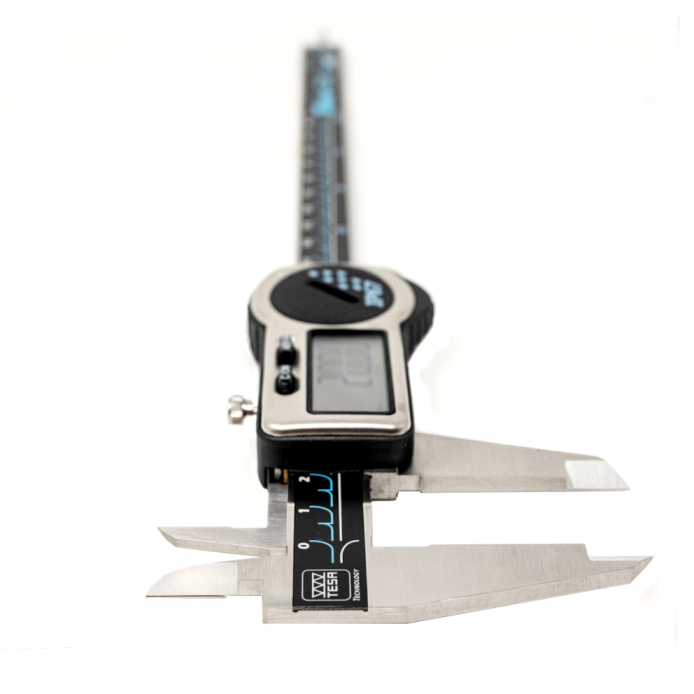

TESA TWIN-CAL IP67
- Production:
- Hexagon MI TESA (Switzerland)
- large liquid crystal display with a symbol height of 11 mm;
- unique concept of connecting TESA TLC (TESA Link Connector);
- soft touch coverage;
- housing is made of stainless steel with a special wear-resistant coating;
- permissible errors: from 100 mm to 200 mm - ± 30 µ; from 200 mm to 300 mm - ± 40 µ;
- repeatability: 10 µ;
- display measurement results in millimeters and inches;
- extended battery life of: more than 12,000 hours;
- zeroing at any point in the measurement range;
- maximum speed of movement: 2,5 ì/ñ;
- automatic power off after 10 minutes;
- operating temperature: +5 ... + 40 °C;
- permissible humidity: up to 100%;
- protection class: IP67.
Calipers TESA TWIN-CAL IP67
| Part number | Measuring range, mm / in |
Resolution, mm / in |
Thumb roller |
Data output |
Degree of protectio |
Depth rod | A | B | C | D | E | Delivery time |
| 00530319 | 0…150 / 0…6 | 0,01 / .0005 | - | TLC | IP67 | square | 40 | 16 | 1,3 ×1,8 | 3,2 | 15,5 | to order |
| 00530320 | 0…150 / 0…6 | 0,01 / .0005 | - | TLC | IP67 | round | 40 | 16 | ⌀ 1,6 | 3,2 | 15,5 | to order |
| 00530321 | 0…150 / 0…6 | 0,01 / .0005 | + | TLC | IP67 | square | 40 | 16 | 1,3 ×1,8 | 3,2 | 15,5 | in stock |
| 00530322 | 0…200 / 0…8 | 0,01 / .0005 | + | TLC | IP67 | Square | 50 | 20 | 1,3 × 1,8 | 3,6 | 15,5 | in stock |
| 00530323 | 0…300 / 0…12 | 0,01 / .0005 | + | - | IP67 | Square | 64 | 22 | 1,4 × 1,8 | 4 | 15,5 | in stock |
