The bracket for the measurement of the diameter of the wheel sets
- Production:
- Рифтэк (Belarus)
- The bracket for the measurement of the diameter of the wheel sets

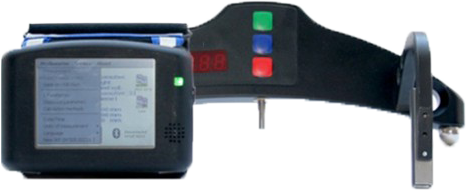

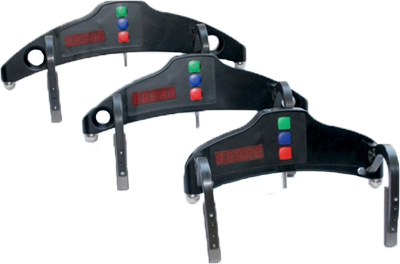

Electronic staple is designed to measure the diameter of the circle of rolling wheel sets of railway rolling stock (locomotives, wagons, metro, trams), carry out admission control and sorting during their maintenance, inspection and repair. Bracket allows to make measurements directly on the rolling stock, without rolling wheel pairs
| Parameter | Series ИДК | Series ИДК-ВТ |
| Diameter measuring range, mm: | from 400 to 1400 or by order | |
| Diameter measuring error, mm: | 0,2 | |
| Discreteness of indication of diameter, mm: | 0,1 mm or 0,01 mm or 0,01 inch | |
| Measuring position, S, mm: | On request | |
| Distance between ball bearings and process range, mm: | 200+/-0,5 (400 ... 950 mm) 250 +/-0,5 (600 ... 1400 mm) 300+/-0,5 (720 ... 1400 mm) |
|
| Display: | Built-in, LED | |
| Process temperature, °С: | -15 ... +55 | |
| Power source: | battery 2 × ААА 1,2В | |
| Mass, kg: | 0,5 | |
| Number of measurements without charging, not less than | 1000 | |
| Bluetooth: | No | да |
Supply kit
| Name | Series ИДК | Series ИДК-ВТ |
| Bracket for diameter measurement: | + | + |
| Charging device: | + | + |
| Passport: | + | + |
| РФ303 – Indication device, optional: | - | + |
| Charging device 5В 3А (optional): | - | + |
| Case: | + | + |
| IKP5 DB, Software database support (CD disc): | - | + |
| Manual: | - | + |
| Calibration tools (optional): | By order | |
| Flat pattern РФ510.11.000 | - | - |
| Pattern-diameter РФ510.11.850: | - | - |
How it works
The method for determining the diameter is based on the measurement of the value of the arrow of the segment formed in the installation of the bracket on the wheel with the help of the movement of the RF25x series installed in the bracket. The result of the measurement is initiated on the built-in display in the bracket.
Measurements are made directly on the rolling stock, without rolling out wheel sets. The IDK-VT bracket contains a Bluetooth interface for transferring the results to the wear database of the wheel pairs.
