Modern means of measuring equipment

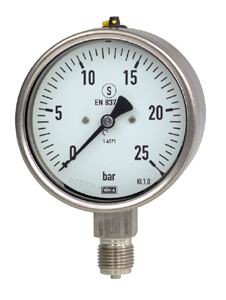

Pressure gauge type 232.30, 233.30

Production:
WIKA (Germany)

Designed for those occasions when you need a safe gauge with solid baffle wall in accordance with the requirements and test conditions of EN 837-1/9.7.2. For gaseous and liquid, aggressive, not highly viscous and non-crystallizing pressure media, also in aggressive environment. To measure pressure pulsations and vibrations (hydro filling, type 233.30).

Pressure gauge type 232.30, 233.30
Pressure gauge type 232.30, 233.30

Description and specifications:

Parameter Value
Nominal size, mm 63, 100, 160
Measuring range (EN 837-1/5) НР 63: 0…1 to 0…1000 bar, НР 100: 0…0,6 to 0…1000 bar, НР 160: 0…0,6 to 0…1600 bar
Accuracy class (EN 837-1/6) НР 63: 1,6, НР 100, 160: 1,0
Joining External thread below or from the back side, НР 63: G 1/4 В, НР 100, 160: G 1/2 В
Sensing element Burdon tube, chrome-nickel steel
Housing Chrome-nickel steel, with a high-strength separation wall, safety valve
Execution EN 837-1, filling: glycerine 99,7% (type 233.30, РМ 02.05)
Possible options / features Other joinings, measuring system made of monel (type 262.30), mounting flange in front, mounting bracket at the back side, electrical contacts (data sheet AE 08.01), converter (type 89Х.34.500, data sheet PE 81.04), liquid filler (type 233.30, data sheet PM 02.05)
Data sheet РМ 02.04, РМ 02.05 (liquid filler, type 233.30)
