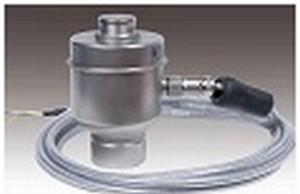

Weigh bridge load cells CPD series

Digital load cell of a new generation manufactured by Bilanciai (Italy).

  • Internal resolution of 200000 bars
  • Communication interface - standard RS-485
  • Stainless steel housing
  • Certified by the International Organization of Legal Metrology (OIML)
  • Dimensions and components are compliant with OIML
  • Comes complete with the original pendulum-type installation unit.

Index Units Sensor execution
C1 C2 C3 C4 C5 C6
Nominal load Emax t 20, 35, 50
Maximum number of discrete
1000 2000 3000 4000 5000 6000
Minimal load % from Emax 0,5
Permissible overload % from Emax 150
Destructive overload % from Emax > 300
Maximum permissible lateral load % from Emax 10
Sensitivity, S divisions 2000000,1%
Zero balance % from S < 0,5
Combined error % from S <0,030 <0,023 <0,020 <0,0173 <0,0140 <0,0115
Repeatable % S <0,080 <0,040 <0,040 <0,030 <0,0240 <0,0200
Temperature drift of zero % S / 5K <0,016 <0,0114 <0,0044 <0,0044 <0,0040 <0,0040
Temperature drift of the signal % S / 5K <0,0132 <0,0066 <0,0057 <0,0045 <0,0036 <0,0030
Care of the characteristic for 30 min. % S <0,056 <0,028 <0,0228 <0,0210 <0,0168 <0,0140
Care of the characteristic for 2030 min. % from S <0,0105 <0,0053 <0,0035 <0,0039 <0,0032 <0,0025
Temperature range with drift compensation C 10+40
Process temperature range C 30+70
Temperature range of saving C 40+80
Commnication interface RS-485
Protection class IP68
Material of the sensor Stainless steel
