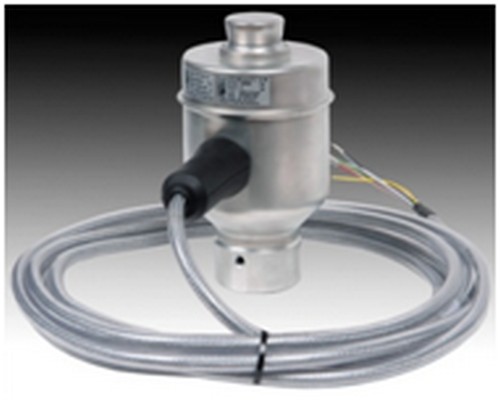

CPR series

Production:: Bilanciai (Italy)

Analog load cells of the new generation is produced by Bilanciai, which is a leading manufacturer of weighbridges in Europe.

Stainless steel housing
Approved by the International Organization of Legal Metrology (OIML)
Dimensions and mounting units comply with OIML requirements
Blast closure execution available EX (i)
Supplied in a kit with original mounting unit.

Main specifications:

Generic Measurement units Execution class

С4

Rated load E_max, тс 20, 35, 50

Maximum discrete number
4000

Safe overload % от E_max 150

Ultimate overload % от E_max 300

Safe sideload % from E_max 50

Suggested voltage В 5…15

Voltage capacity В 18

Input resistance Ом 700 ± 5

Output resistance Ohm 700 ± 5

Insulation resistance MOhm > 5000

Rated M/T S, mV/V 2,0 ± 0,1%

Zero balance % from S < 2

Deviation limit % from S <±0,018

Frequency % from S <±0,010

Zero temperature drift % from S/5°K <±0,005

Signal temperature drift % from S/5°K <±0,004

Deviation during 30 min. % from S <±0,018

Deviation during 20...30 min. % from S <±0,0037

Temperature range with drift compensation °C –10…+40

Process temperature range °C –30…+70

Storage temperature range °C –40…+80

Cable length m 18 ± 0,2

Net weight kg ~3,5

Protection class IP 67

Material Stainless steel

Additional information

Buy CPR series on the territory of Ukraine in the fields of: Vinnytsia, Volyn, Dnipropetrovsk, Zhytomyr region, Transcarpathian, Zaporozhye, Ivano-Frankivsk, Kiev, Kirovograd, Lviv, Mykolayiv, Odesa, Poltava, Rivne , Sumy, Ternopil, Kharkiv, Kherson, Khmelnytsky, Cherkasy, Chernihiv.
You can buy CPR series in stock or by special order at our office in the Khmelnitsky and the main office in Kharkiv.
The price of CPR series quickly calculated on the basis of the required customer technical parameters of the product.
Initial and periodic verification, diagnosis, adjustment, calibration, service - warranty and post-warranty. The specialists of KODA will perform maintenance CPR series on a professional level. Professional advice on the use of CPR series.
