Level switch VEGAPOINT 11

Production:
VEGA (Germany)

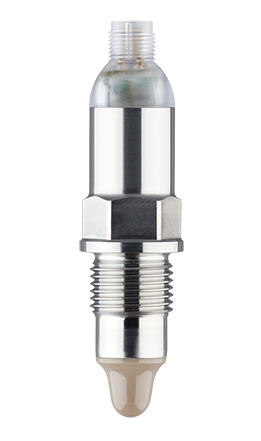

Capacitive level switches Level switch VEGAPOINT 11

The compact and inexpensive capacitive water-based liquid level indicator (DK> 2) fully meets the requirements of hygienic processes in the food, brewing and pharmaceutical industries. Does not require adjustment after installation.
  • Use: water-based liquids
  • Connection: thread from G½, ½ NPT, Clamp from 1"
  • Operating temperature: -20 ... + 100 ° C
  • Working pressure: -1 ... + 25 bar (-100 ... +2500 kPa)
  • Output signal: PNP transistor

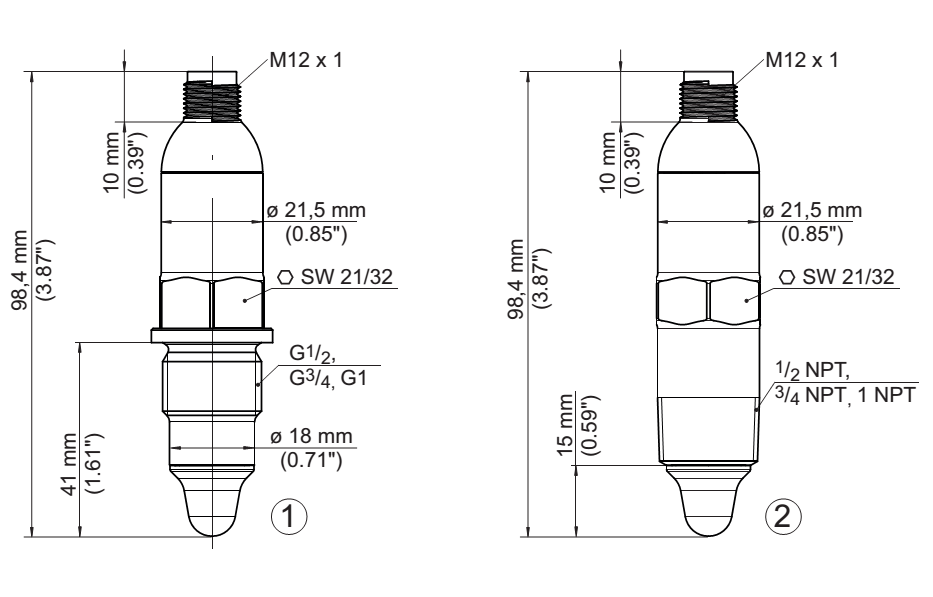

  1. Thread G½, G1, G1 (DIN ISO 228/1) and plug M12 x 1
  2. Thread ½ NPT, ¾ NPT, 1 NPT and plug M12 x 1

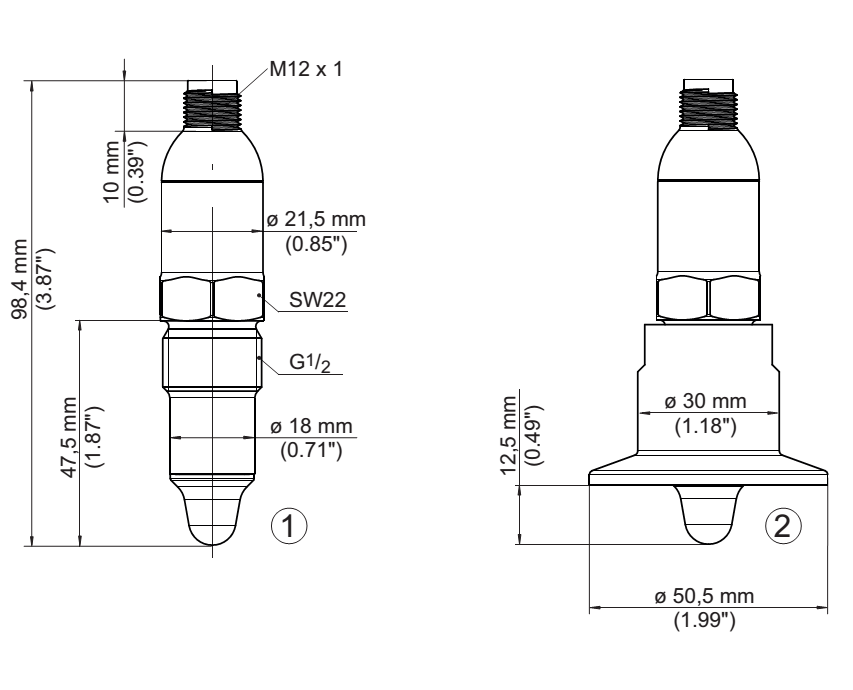

  • G½ Thread for hygienic adapters (DIN ISO 228/1)
  • Hygienic version with threaded Clamp adapter
