Level switch VEGAPOINT 31

Production:
VEGA (Germany)

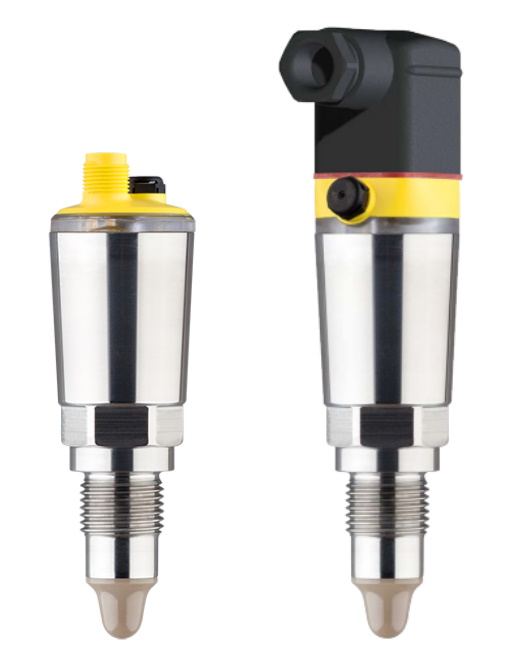

Capacitive level switches Level switch VEGAPOINT 31

Compact and inexpensive capacitive level indicator for fine-grained and powdered bulk products fully meets the requirements of hygienic processes in the food, brewing and pharmaceutical industries. Can be used without adjustment after installation. Additional settings are made via the Bluetooth interface. With the IO-Link interface, it also offers continuous digital data transfer.
  • Application: fine-grained and powdered bulk products
  • Connection: thread from G½, ½ NPT, Clamp from 1"
  • Operating temperature: -20 ... + 100 ° C
  • Working pressure: -1 ... + 25 bar (-100 ... +2500 kPa)
  • Output signal: PNP transistor

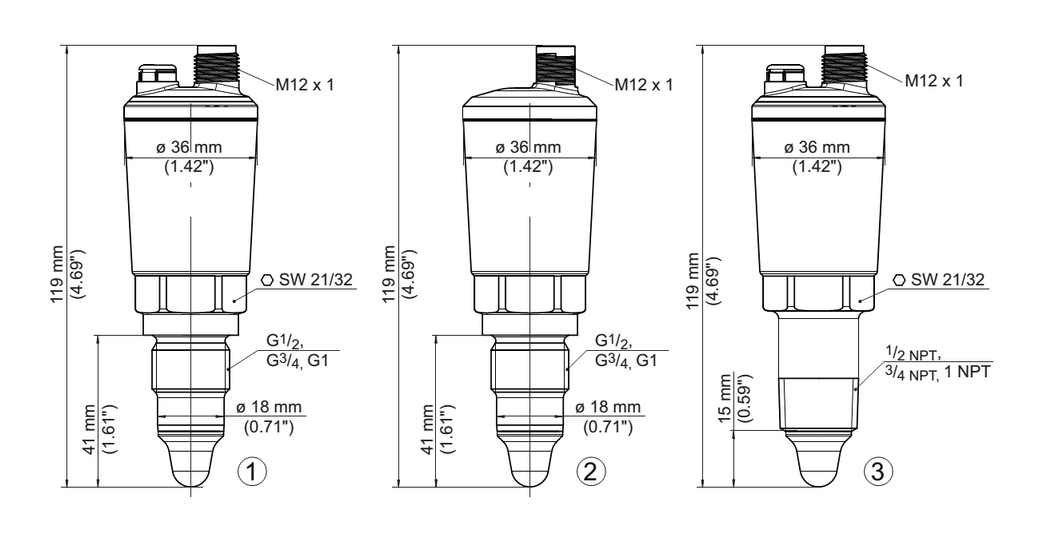

  1. Thread G½, G1, G1 (DIN ISO 228/1) and plug connector M12 x 1 (housing: 316L and plastic) the
  2. Thread G½, G¾, G1 (DIN ISO 228/1), and plug connector M12 x 1 (housing: 316L)
  3. Thread ½ NPT, ¾ NPT, 1 NPT and M12 x 1 male connector (housing: 316L and plastic)
