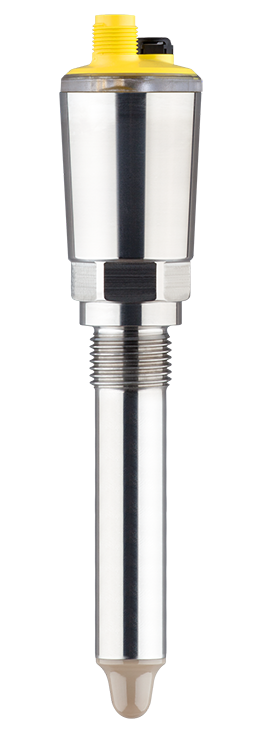

Level switch VEGAPOINT 23

Production:

VEGA (Germany)

Low-cost water-based liquid level indicator (DK> 1.5) with an elongated (up to 1 m) sensing element fully meets the requirements of hygienic processes in the food, brewing and pharmaceutical industries. Can be used without adjustment after installation. Additional settings are made via the Bluetooth interface. With the IO-Link interface, it also offers continuous digital data transfer.

• Application: water-based liquids
• Connection: thread from G½, ½ NPT, Clamp from 1"
• Operating temperature: -20 ... + 100 ° C
• Working pressure: -1 ... + 25 bar (-100 ... +2500 kPa)
• Output signal: PNP transistor

• Application: water-based liquids
• Connection: thread from G½, ½ NPT, Clamp from 1"
• Operating temperature: -20 ... + 100 ° C
• Working pressure: -1 ... + 25 bar (-100 ... +2500 kPa)
• Output signal: PNP transistor

  Additional information

  Buy Level switch VEGAPOINT 23 on the territory of Ukraine in the fields of: Vinnytsia, Volyn, Dnipropetrovsk, Zhytomyr region, Transcarpathian, Zaporozhye, Ivano-Frankivsk, Kiev, Kirovograd, Lviv, Mykolayiv, Odesa, Poltava, Rivne , Sumy, Ternopil, Kharkiv, Kherson, Khmelnytsky, Cherkasy, Chernihiv. You can buy Level switch VEGAPOINT 23 in stock or by special order at our office in the Khmelnitsky and the main office in Kharkiv. The price of Level switch VEGAPOINT 23 quickly calculated on the basis of the required customer technical parameters of the product. Initial and periodic verification, diagnosis, adjustment, calibration, service - warranty and post-warranty. The specialists of KODA will perform maintenance Level switch VEGAPOINT 23 on a professional level. Professional advice on the use of Level switch VEGAPOINT 23.

  See also:

  Capacitive level switches

  • Level switch VEGAPOINT 11
  • Level switch VEGAPOINT 21
  • Level switch VEGAPOINT 31
  • Capacitive rod electrode for level detection VEGACAP 62
  • Capacitive rod electrode for level detection VEGACAP 63
  • Capacitive rod electrode for level detection VEGACAP 64
  • Capacitive cable electrode for level detection VEGACAP 65
  • Capacitive cable electrode for level detection VEGACAP 66
  • Capacitive cable electrode for level detection VEGACAP 67

  Downloads:

  Data Sheet

  • VEGAPOINT 23 (pdf, 414 Кб)
