ISOMASTER АВY
- Production:
- Hexagon MI TESA (Switzerland)

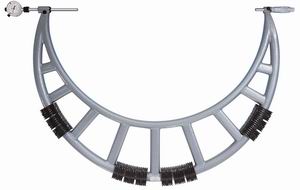

Similar micrometers of the AB series, but equipped with an adjustable dial indicator 01.40301, facilitating the finding of the culmination point with a constant measuring force.
- Micrometers ISOMASTER АВY series
| Type | Range of use, mm | Permissible error, μm | Maximum bending of the frame at a measuring force of 10 N, μm |
| 01.12001 | 0…100 | 6 | 3 |
| 01.12002 | 100…200 | 7 | 4,5 |
| 01.12003 | 200…300 | 8 | 7 |
| 01.12004 | 300…400 | 9 | 9 |
| 01.12005 | 400…500 | 10 | 9 |
| 01.12006 | 500…600 | 11 | 9 |
| 01.12007 | 600…700 | 12 | 10 |
| 01.12008 | 700…800 | 13 | 12 |
| 01.12009 | 800…900 | 14 | 12 |
| 01.12010 | 900…1000 | 15 | 16 |
| 01.12011 | 1000…1100 | 16 | 16 |
| 01.12012 | 1100…1200 | 17 | 17 |
| 01.12013 | 1200…1300 | 18 | 17 |
| 01.12014 | 1300…1400 | 19 | 17 |
| 01.12015 | 1400…1500 | 20 | 18 |
Set of 4 interchangeable tips.
Type 01.40101.
The kit consists of 4 interchangeable tips with a 25 mm increment. The tips in the sets are adjusted and numbered, making it unnecessary to adjust the readings every time the tip is changed.
