VEGADIF 85 with diaphragm CSB

Production:
VEGA (Germany)

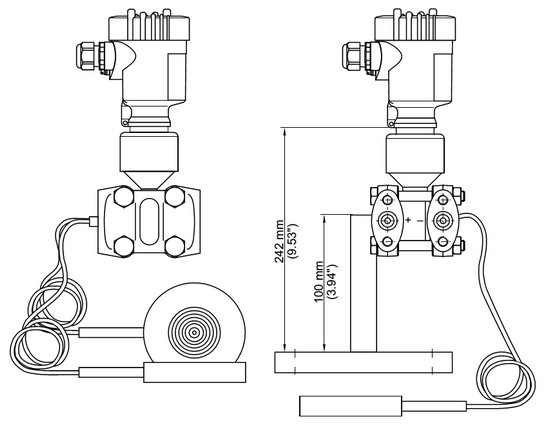

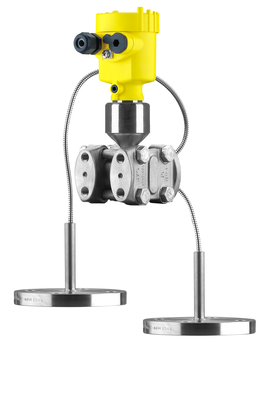

Differential pressure transmitters VEGADIF 85 with diaphragm CSB

  • Application: measuring diaphragms for connection to the process
  • Process fitting: variety isolating diaphragm
  • Measuring range: -100…100 mbar to -40…40 bar
  • Overload: up to 420 bar
  • Process temperature: -40…+400°C
  • Output signal: 4…20 mA, 4…20 mA/HART, Profibus PA, Foundation Fieldbus
