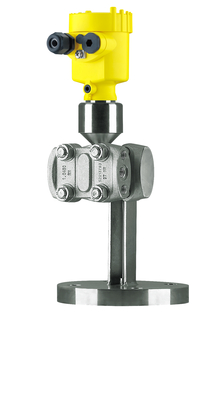

VEGADIF 85 with diaphragm CSS

Production:
VEGA (Germany)

Differential pressure transmitters VEGADIF 85 with diaphragm CSS

  • Application: measuring diaphragms for connection to the process
  • Process fitting: side (-): ¼ -18 NPT, RC ¼; side (+): DN 80…DN 100, ANSI 2“…ANSI 4", JIS 80A…JIS 100A
  • Measuring range: -10…10 mbar to –40…+40 bar
  • Overload: up to 420 bar
  • Process temperature: -40…+120 ° C
  • Output signal: 4…20 mA, 4…20 mA / HART, Profibus PA, Foundation Fieldbus
