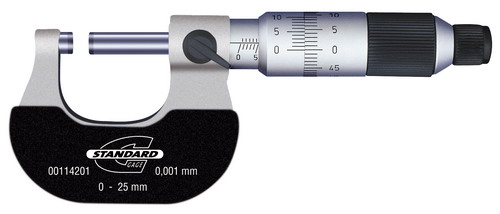

STANDARD GAGE (vernier without paralax)
- Production:
- Hexagon MI STANDARD GAGE (Switzerland - China)
Key features and specifications:
- Nonius scale without paralax for high-precision measurements;
- Price division of the vernier scale, mm: 0.001;
- Installation measure for micrometers with a measuring range of more than 25 mm;
- Friction drum;
- Solid carbide measuring surfaces;
- Supplied in a separate box with an inspection report.
| Type | Installation measure | Error | Installation measure |
| 00114201 | 0 … 25 | 0,004 | - |
| 00114202 | 25 … 50 | 0,004 | 25 |
| 00114203 | 50 … 75 | 0,005 | 50 |
| 00114204 | 75 … 100 | 0,005 | 75 |
Kits of micrometers
are supplied in a special case with inspection reports for each micrometer.
| Type | Measuring range | Number of micrometers | Installation measures |
| 00114210 | 0 … 75 | 3 | 25, 50 |
| 00114211 | 0 … 100 | 4 | 25, 50, 75 |

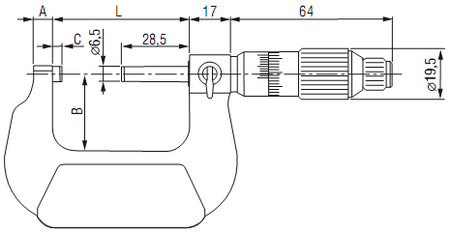

Dimensions
| Measuring range | Sizes, mm | |||
| mm | A | B | C | L |
| 0 … 25 | 6 | 24 | 3 | 32 |
| 25 … 50 | 8 | 32 | 3 | 57 |
| 50 … 75 | 8 | 45 | 3 | 82 |
| 75 … 100 | 8 | 57 | 3 | 107 |
