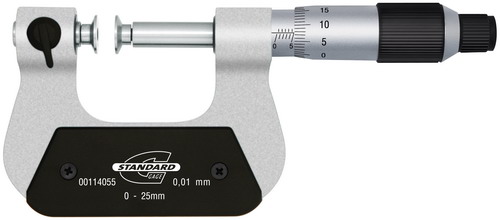

STANDARD GAGE (with replaceable measuring tips and non-rotating spindle)

Micrometers special STANDARD GAGE (with replaceable measuring tips and non-rotating spindle)

Key features and specifications:

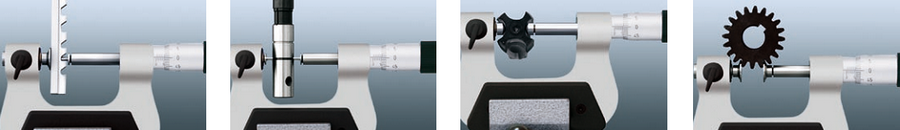

  • A wide range of applications thanks to 7 pairs of exchangeable measuring tips of various shapes;
  • Micrometers are supplied with 7 pairs of replaceable measuring tips;
  • Price division of the vernier scale, mm: 0,01;
  • Friction drum;
  • Solid carbide measuring surfaces;
  • Supplied in a separate box with an inspection report.

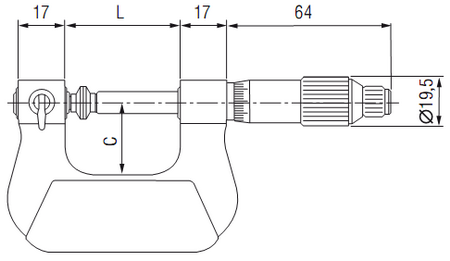

Type Measuring range, mm Error, mm С, mm L, mm
00114055 0 … 25 0,004 26 42
00114056 25 … 50 0,004 38 67
00114057 50 … 75 0,005 50 92
00114058 75 … 100 0,005 62 118

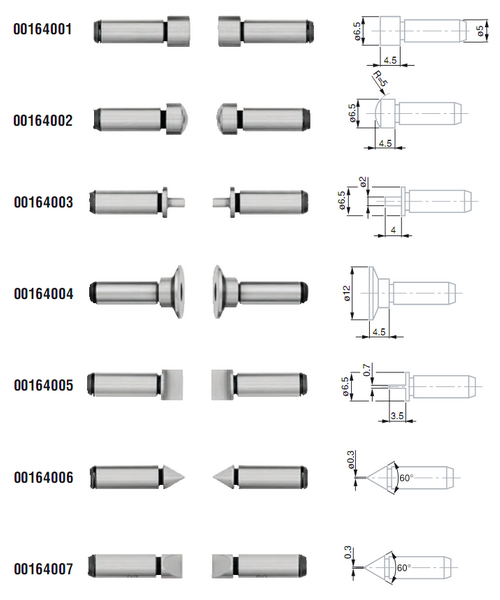

Interchangeable measuring tips
Type Description
00164001 Flat measuring surfaces, Ø 6,5 mm
00164002 Spherical measuring surfaces, R=5 mm
00164003 Flat measuring surfaces of small diameter, Ø 2 mm
00164004 Disc measuring surfaces, Ø 12 mm
00164005 Knife-like flat measuring surfaces, 3,5 × 0,7 mm
00164006 Conical measuring surfaces, 60°, Ø 0,3 mm
00164007 Knife-like conical measuring surfaces, 60°, 0,3 mm
00164008 Complete kit of replaceable measuring tips
