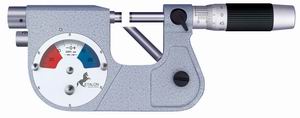

MICRO-ETALON 225
- Production:
- Hexagon MI TESA (Switzerland)
Main features and specifications:
- micrometers with a dial gauge;
- have a movable measuring tip and a built-in a dial gauge indicator;
- ideal for serial comparative measurements of small parts - the nominal size is set on a micrometer, and the deviations are read by the dial gauge;
- the measuring tip is pulled out using the button;
- Rotating dial for fine tuning with adjustable tolerance markers;
- permissible error: 1 μm.
- Micrometers MICRO-ETALON 225 series
Models with division 0,001 mm:
| Type | Measuring range, mm |
| 72.108669 | 0…25 |
| 72.108691 | 25…50 |

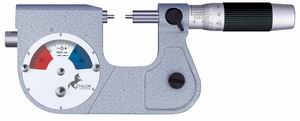

| Model with small measuring surfaces: | |
| 72.108722 | 0…20 |
- Micrometers MICRO-ETALON 225 series
Models with division 0,00005 inch:
| Type | Measuring range, mm |
| 72.109837 | 0…1 |
| 72.109843 | 1…2 |
| Model with small measuring surfaces: | |
| 72.109857 | 0…0,8 |
- Micrometers MICRO-ETALON 225 series
Models with division 0,002 mm:
| Type | Measuring range, mm |
| 72.108670 | 0…25 |
| 72.108716 | 25…50 |
Models with division 0,0001 inch:
| Type | Measuring range, mm |
| 72.109835 | 0…1 |
| 72.109841 | 1…2 |
